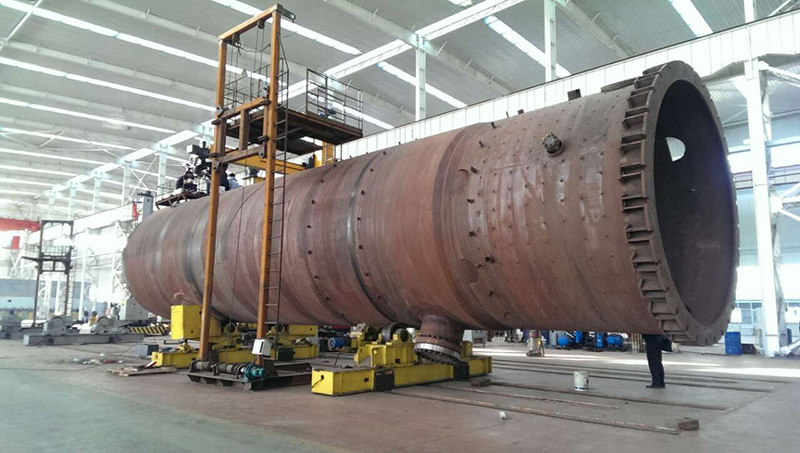

TR3 series automatic anti-floating welding rotator

Feature code：
  • Single top-lifting or double top-lifting structure can automatically prevent axial movement of workpiece.
  • The centre distance between rollers can be adjusted by the screw hole reserve,and the base is equipped with mounting clamp.
  • Frequency stepless speed regulation, large starting torque.
  • Friendly human-machine interface.
  • 2000A Friction conductor with elastic compensation function.
  • Remote control and data sharing can be realized by the analog and digital interface reserved.


Model

Load capacity (T)

Diameter of workpiece (mm)

Roller dimensions
(D×W) /mm

Linear velocity (mm/min)

Motor power (kW)

Anti-floating accuracy (mm)

TR3-100T

100

Φ800~Φ6000

Φ500×200

100~1000

2×2.2

≤±2

TR3-150T

150

Φ800~Φ6000

Φ500×250

2×3.0

TR3-200T

200

Φ900~Φ6000

Φ600×250

2×4.0

TR3-300T

300

Φ900~Φ6500

Φ700×300

2×5.5

TR3-400T

400

Φ900~Φ6500

Φ800×300

2×7.5

TR3-600T

600

Φ1000~Φ7000

Φ800×350

2×11.0

Note: The above parameters are for TIME standard product configurations, and can be customized according to the customer’s requirements.
